Up to 30 CPM
3 Random Stations
Top & Bottom Seal
Overview

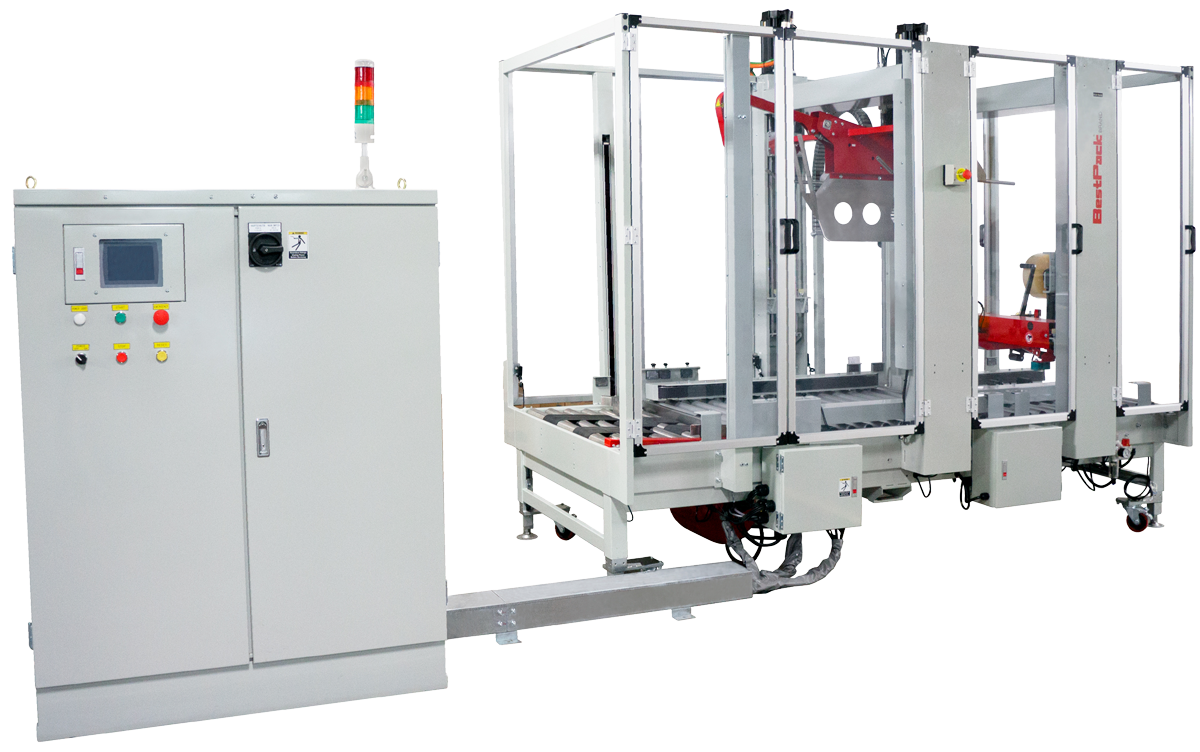

The BestPack™ CSS Series is a Fully Automatic Random Carton Sealer featuring our servo driven technology, which allows for fast height adjustment, quick width adjustment and smooth sealing operations. The CSS’ design utilizes three independent stations: centering station, flap folding station, and sealing station. The CSS is designed for speed and allows for precise positioning at each station. This machine is capable of a carton output up to 30 cartons per minute.
Independent 3-stage operation for reduced cycle time centering, folding and sealing

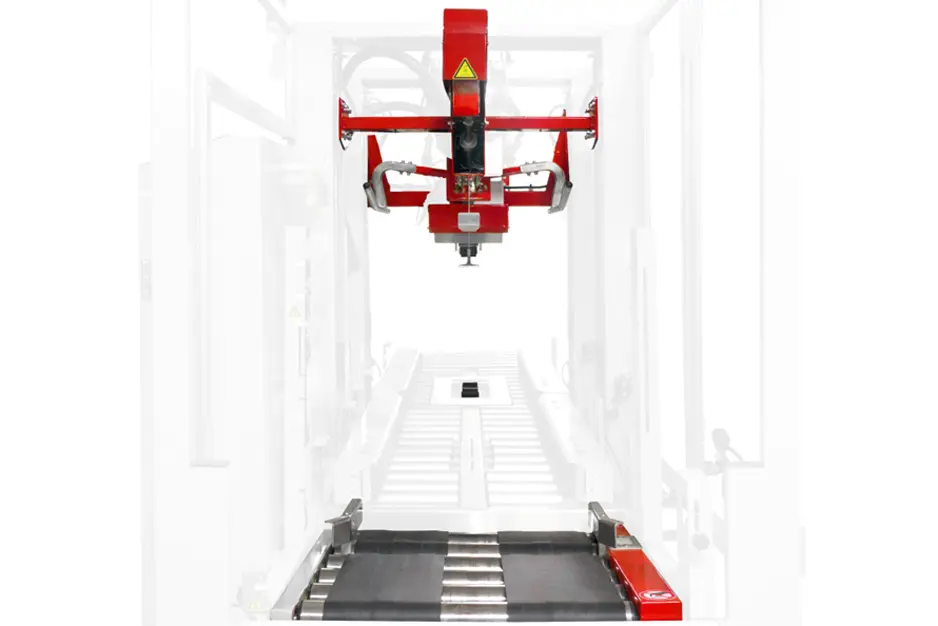

Independent 3-Stage Operation: Indexing, Folding & Sealing

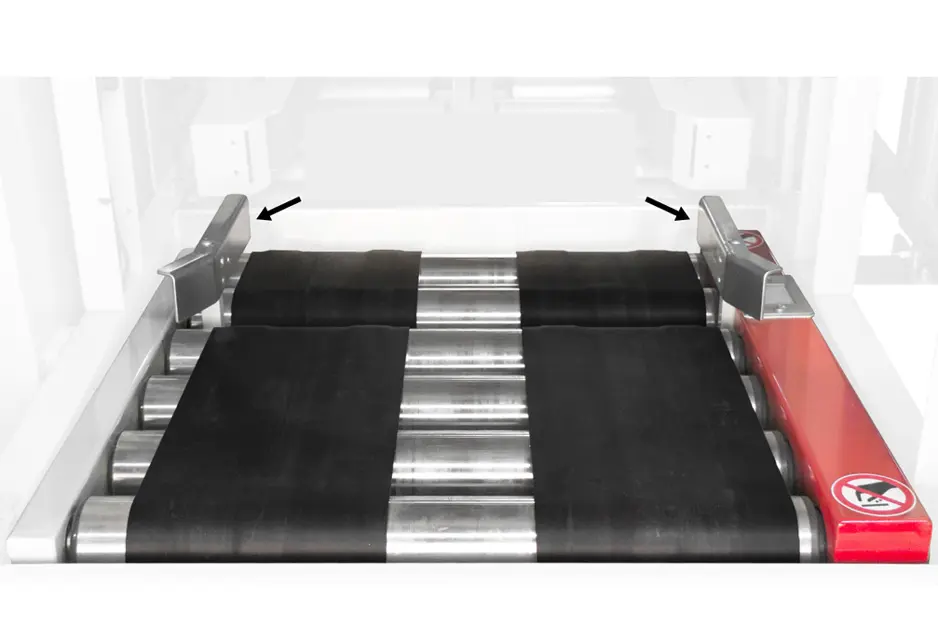

Indexer with Carton Centering Device

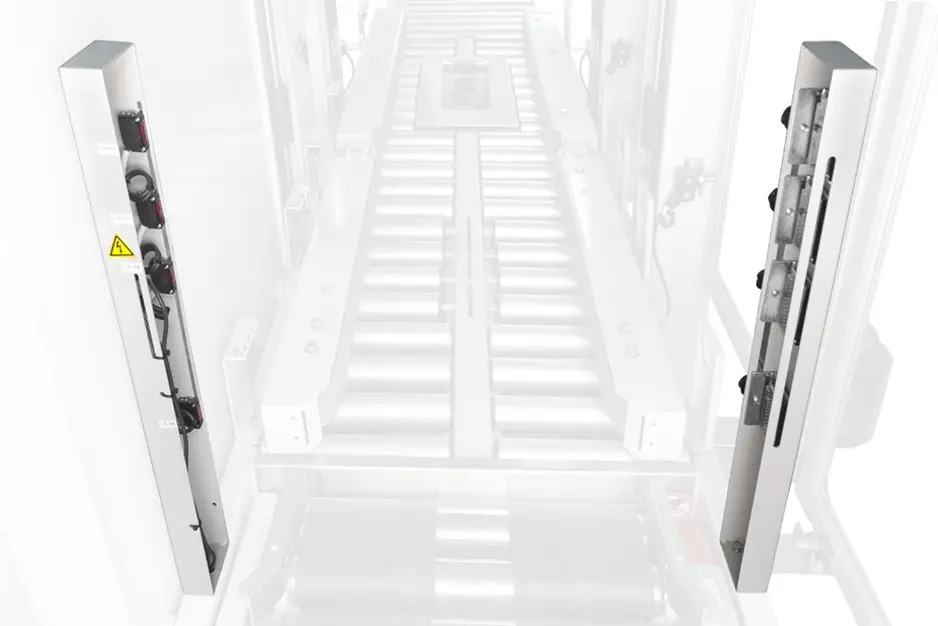

Carton Height Sensors
Technical Specifications
Speed
Up to 30 Cartons/Min.
Power Requirements
208 Volts 3 Phase
Air Requirements
80 PSI, 5 SCFM
Shipping Weight
2,440 lbs
Machine Dimensions
(95.9") x (48.5") x (90.3")
Carton Range
(10.0" - 25.5") x (7.0" - 20.0") x (4.0" - 20.0")
Conveyor Height and Adjustment
(24.5" - 30.0")
Tape Roll Lengths
1,000 yd. & 1,500 yd.
All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.
