Speed up to 300'/min.
Width: 1" - 120"
Endless number of custom options
Overview
Hybrid specialty conveyors are custom designed specifically to meet the most demanding conveyance objectives. Some of the most common challenges that require specialty conveyor solutions include: limited space, high speeds, heavy loads, high impact, abrasive products, delicate products, temperature extremes high or low PH products.

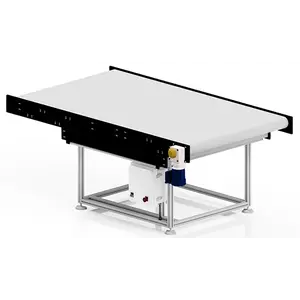

Flat Conveyors
A Hybrid flat conveyor is anything but basic, built to meet the toughest demands of your conveyance objectives.

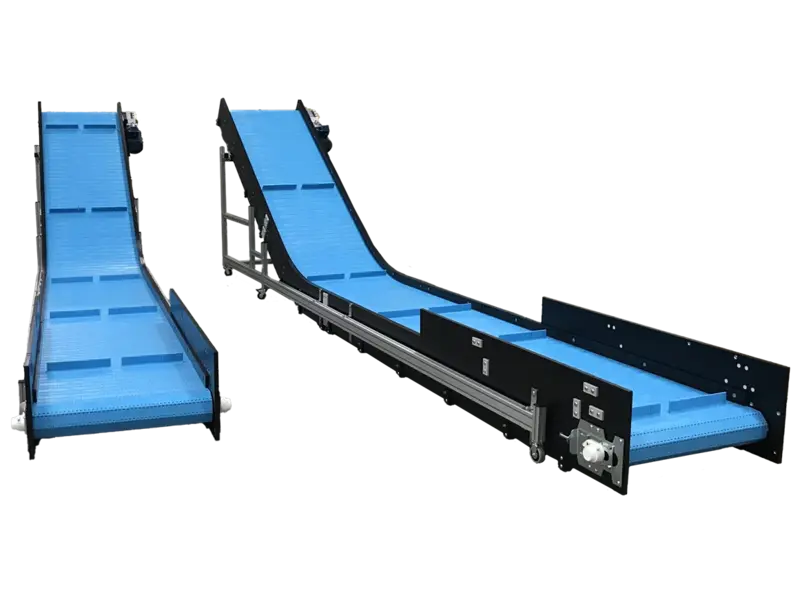

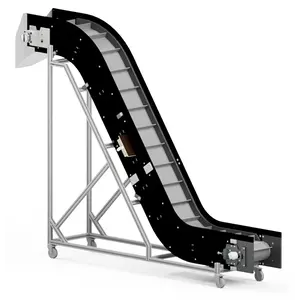

Z Conveyors
Z conveyors can be built using angles ranging from 30o to 90o, creating the custom configuration to get your product exactly where it needs to be.
Vertical Conveyors
Hybrid vertical conveyors gives you the ability to maximize floorspace and efficiently convey products of all kinds to their final destination.
Radius Conveyors
Hybrid radius turn conveyors make the required lateral turns (from 5o to 180o) and connect with other modules to build one conveyor with continuous belt flow.
Technical Specifications
Width
1" – 120"
Length
Up To 150'
Speed
Variable Speed Up To 300' Per Minute
Support
Extruded Aluminum With Or Without Locking Casters
Ceiling Hung
T-Slot Aluminum Profile Option
Belting
Link style modular belting with wide range of options/configurations to meet application needs.
Solid Surface Polyurethane
Materials
HDPE, UHMW, Hi-Temp Nylon (Application Dependent)
Aluminum, Atainless, or HDPE Crossbar Aupports
Stainless Steel Hardware
Configurations
Flat, Angle, Angle Z, Vertical Z
Radius Turn
Motor
Internal Or External
Brushless DC High Efficiency
